Multichannel Computer
Music Concert Hall of the Anton Bruckner University Linz
ABPU, Hagenstraße 57, 4040 Linz, Austria/EU
Sonic Lab is a intermedia computer music
concert hall with a 20 audio channel surround dome and double
video projection, initated by Andreas Weixler & Se-Lien
Chuang.

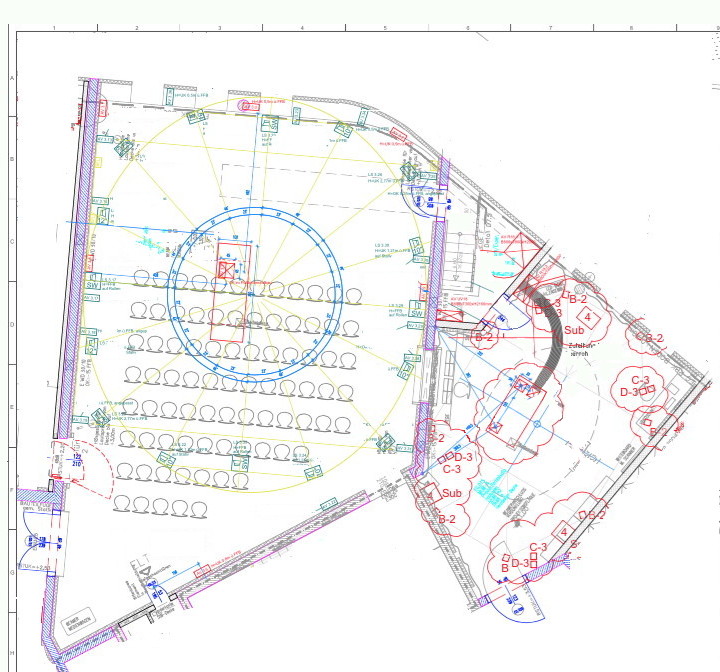

The Sonic Lab
is one of the three concert halls of the new campus building of the
Anton Bruckner University. It is designed as computer music concert
hall dedicated to multichannel computer music and electroacoustic
music including experimental music in cooperation of JIM - the
Institute of Jazz and Improvised Music and the future IKD |
CMS Institute of Composition, Conducting and Computer Music,
among others. It is designed on an intiative of Ao.Univ. Prof.
Andreas Weixler and Se-Lien Chuang, know as the
artists group Atelier Avant Austria, in the years 2005 -

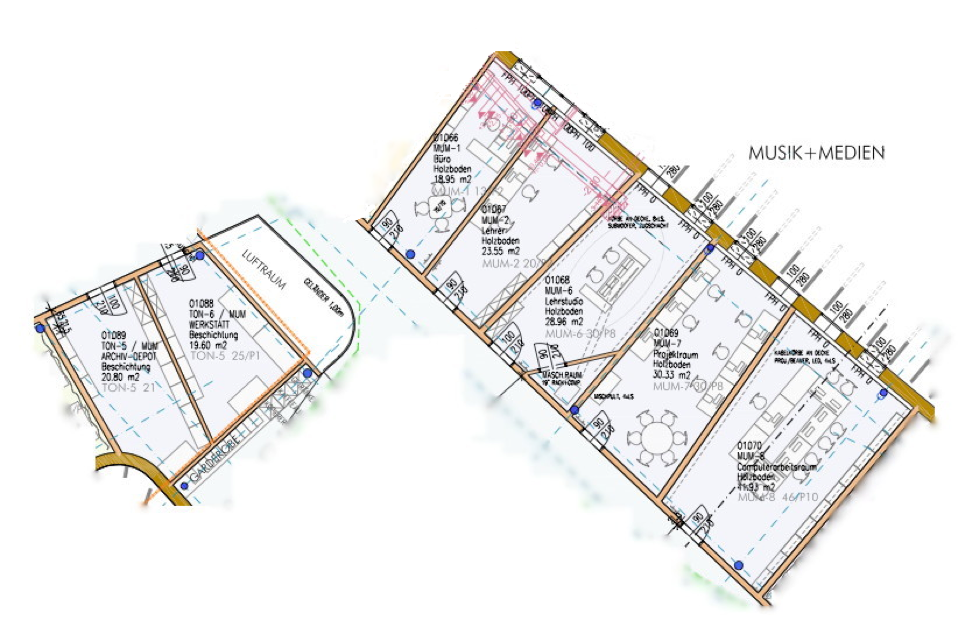

2015 together with a formation of rooms for the Computer Music
Studio: Sonic Lab - multichannel computer music concert hall (20+2
ch), Production Studio (20 ch), Lecture Studio (8ch), Computer
Research Room (4ch), Project Room (4ch), Archive, Workshop, Machine
Room and two faculty offices
"The CMS - Sonic Lab multichannel system has the peculiarity of
being distributed on four different levels, with the speakers placed
around and above the audience.
From the console, the possibility to control the volume of each
loudspeaker allows the interpreter to set, in addition to left /
right - front / rear movements, even sound trajectories from bottom
to top and vice versa, while allowing diagonal movements and
rotations on each of the four levels." Dante Tanzi 2017

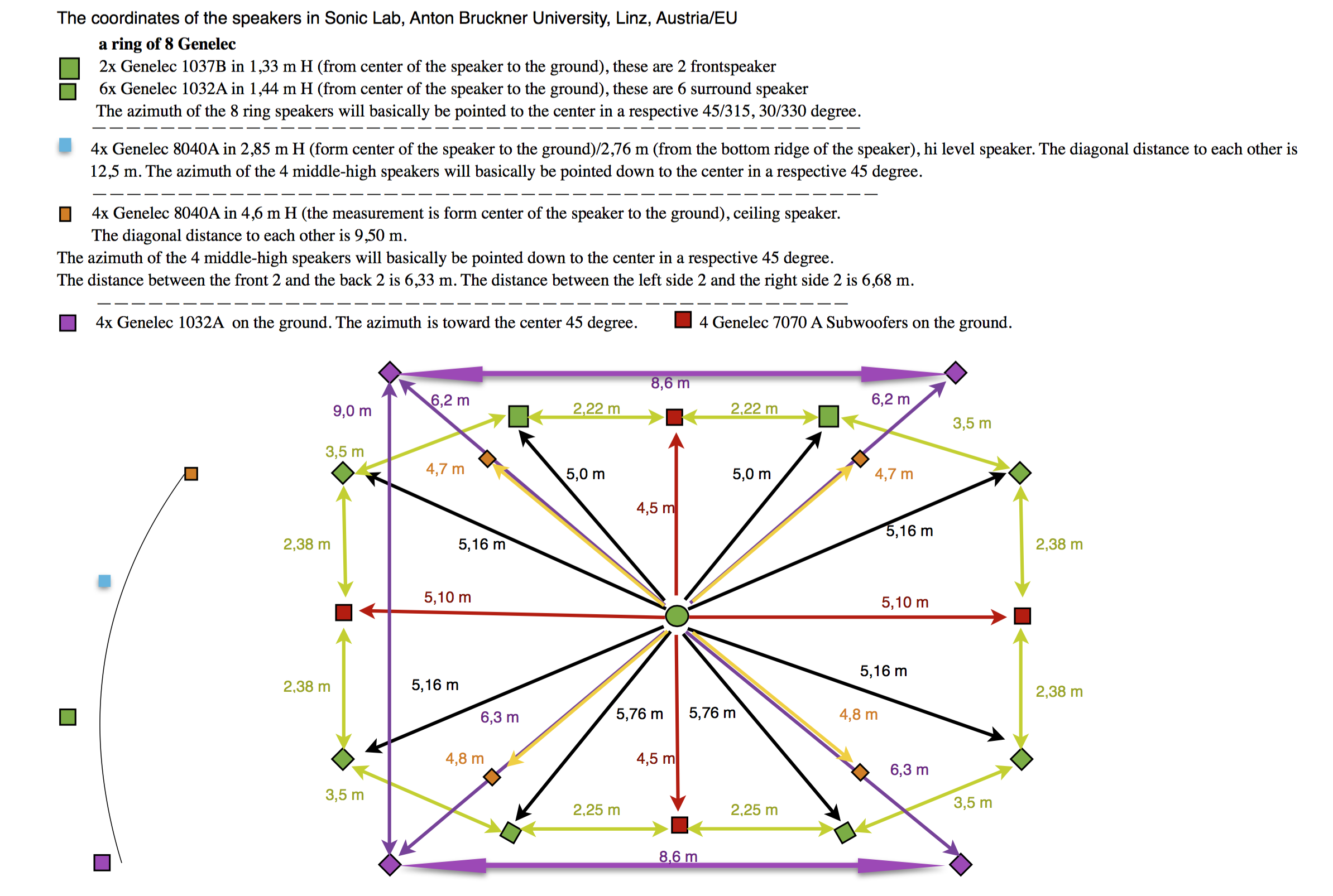

The Sonic Lab periphonic speaker system consists
of 20 active speakers:
a ring of 8 Genelec
2x Genelec 1037B in 1,5 m, frontspeaker
6x Genelec 1032A in 1,5 m, surround speaker
3 quad layers
4x Genelec 1032A in 3 m, hi level speaker
4x Genelec 8040A in 5,5 m, ceiling speaker
4x
ICMC2016-Paper-CMS_studio_reportJH_noname.pagesKS
Audio CPD 12M ICMC2016-Paper-CMS_studio_reportJH_noname.pages
, on ground level
subs
4 Genelec 7070 A Subwoofer
3D
model of the Sonic Lab multichannel sound system by
Michael Enzenhofer
(need to install Unity Web Player) - same in the CMS
production studio (2 subs)
PA System
2x Kling & Freitag CA1215-9SP
2x Kling & Freitag SW 115-E SP
4x KS Audio
CPD 12M, (Monitore)
ch 1 - 8 —> Ring of
eight, 1,5 m (8ch "french eight") - 2x Genelec 1037B in 1,5 m,
frontspeaker, 6x Genelec 1032A in 1,5 m, surround speaker
ch 9 - 12 —> quad
ground speaker, (4ch) 4x KS Audio CPD 12M (ground monitor 45º)
ch 13 - 16 —> quad mid high
speaker, 3 m (4ch), 4x Genelec 1032A
ch 17 - 20 —> quad top speaker, 5,5 m
(4ch), 4x Genelec 8040A
ch 21 - 24 —> 4 sub woofer,
(4ch) 21 Front, 22 Back, 23 Left, 24 Right,
4 Genelec 7070 A Subwoofer
ch 25 - 32 ---> 8 sends
--> 3 data projectors
a double video/data projection 2x encased
one middle projector
Panasonic PT-RZ570
a production studio on site with same 20-speaker
constellation with a studio window
Multi channel computer music concert hall Sonic Lab and
CMS production studio
The Computer Music Studio
offers lectures and courses in the field of music and media
technology, media composition and computer music, and the range of
subjects it offers is closely integrated with those of the Institute
of Composition, Conducting and Computer Music IKD | CMS – and JIM,
the Institute for Jazz and Improvised Music. The CMS can be seen as
an interface and competence centre spanning several institutes of
the Anton Bruckner Private University, active in the region through
numerous co-operations and internationally networked with exchanges
and a lively conference scene.
The Computer Music Studio organizes numerous concert and lecture
series: list
The Computer Music Studio was founded in 1995 as the SAMT - Studio
for Advanced Music And Media Technology by DI Adelhard Roidinger and
the Rector of the Bruckner Conservatory, Hans Maria Kneihs in the
buildings of the Software Park Hagenberg. Since 2008 the University
Studio, as it became, has been under the direction of
Ao.Univ.Prof. Mag. Andreas Weixler. At the same time an
institute directive changed the name of the studio to the CMS -
Computer Music Studio.
